Any industrial, manufacturing, or production process application that requires flexible, reliable, and affordable automation control needs a PLC control. Also known as PLC Automation Panels, these control panels offer an edge over conventional relay-based systems with their reduced size, ease in modification of logic, means of remote communications and advances in technology.
PLC panels are used in variety of electronic and electrical circuit fittings for a variety of applications which can be broadly divided into 3 categories:
OEM Control Panel: which covers applications such as wind turbine panels, compressor control panel, incinerators, boilers, chillers, spray driers, HVAC panels, etc.
Electrical Panels: covering MCC, PDB, Change-over panel, etc.
Instrumentation/Automation Panels: such as VFD panel, computer panel, monitor, pressurization, SCADA systems.
PLC CONTROL PANEL COMPONENTS
All PLC control systems include the panel structure and the internal components. Depending on the application and the user’s criteria, control panels are designed and fabricated.

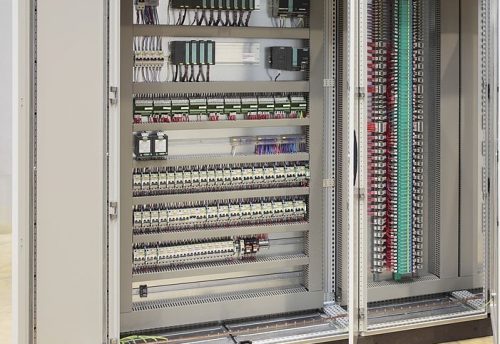

For example, the structure of an industrial automation electrical PLC control panel is a combination of an enclosure, a back panel and doors (usually one or two depending on the size of the application). The enclosure usually comes with ratings that specify properties such as
There are many types of electrical control panel components which organize the different functions. These components include:
MP Tech Solution Group provides total solutions for all Automation projects and machines including supply of panels with complete switch gear and busbar solutions, user interfaces.
In industrial automation, electrical panels play a crucial part. They provide higher-level monitoring and control of the various functions of production equipment, allowing manufacturers to define, organize and meet production objectives.
MP Tech Solution Group designs custom “Control Panel Solutions” for a wide range of applications like water and waste water treatment plants, sugar machinery, plastic extrusion, printing, pharmaceutical and other similar applications in different industry verticals.
MP Tech Solution Group makes these electrical control panel solutions using their fabricated MS or SS panels and world class switch gears as per the standardization of the end user. Every control panel and its components are as per the latest technologies. Using high-end design software, they are able to provide good quality documentation for easy and accurate maintenance and servicing.
